Model: NCW-015

Features:

Robust, lightweight design with IP67 waterproof rating for reliable use in all weather conditions
Supports local recording and live streaming via Wi-Fi to a command center
Built-in GPS with a secure 2.0” TFT LCD display for accurate reporting and data sharing
SOS/emergency button for instant connection to the control room
Full recording integrity – files cannot be altered, deleted, or accessed if the device is lost
High-quality evidence capture suitable for legal and court use
AES256 encryption for secure data storage and transmission
Password-protected system and secured settings

Specifications:

Hardware & Camera

Chipset: Ambarella H22
Sensor: OS05A20
Lens: 140° wide-angle, F2.0

Video & Recording

Resolution:
- 2560×1440 (30P)
- 1920×1080 (60P/30P)
- 1280×720 (60P/30P)
- 848×480 (30P)
Format: H.264 / H.265 (MP4)
Playback: Video, image, audio
Fast forward / rewind: 2× to 64×
Loop recording: On/Off
Pre-record: 5–60 seconds
Post-record: 5–60 seconds / up to 2 minutes

Photo & Audio

Photo resolution: 4MP – 40MP
Burst mode: 2–30 photos
Self-timer: 3 / 5 / 10 seconds
Format: JPG
Snapshot during video recording supported
Audio: Built-in high-quality microphone (AAC format)

Night Vision & Indicators

IR lights: 2 (range 10–15m)
Indicator lights: Blue / white / red

Storage & System

Storage: 32GB / 64GB / 128GB
Unique ID: 6-digit device ID + 6-digit user ID
Language: English, Vietnamese

Display & Controls

Screen: 2.0” TFT-LCD high-resolution display
One-button recording supported
Display can be turned off during recording

Connectivity

Wi-Fi: STA mode
Port: USB 2.0

Battery & Performance

Recording time: Up to 15 hours
Charging time: ~4 hours

Physical

Weight: 150g
Dimensions: 77 × 57 × 26 mm
Operating temperature: -40°C to 60°C
Protection: IP67, drop resistance ≥2m

In the Box:

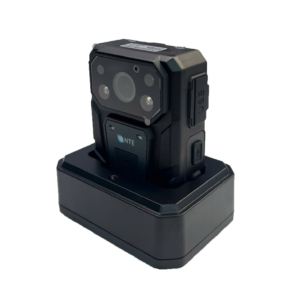

1 × Body-worn camera
1 × Clip
1 × Cable & adapter
1 × Charging dock
1 × User manual
1 × Carrying case
